Magnification 6-36x
Objective Lens Dia 56 mm
Focal Plane First Focal Plane
Eye Relief 100 mm / 4.0 in
Lens Coating Fully Multi-coated
Linear Field of View @ 100 yd 21.6 - 3.6 ft @ 100 yards
Linear Field of View @ 100 m 7.2 - 1.2 m @ 100 meters
Angular Field of View ° 4.13 - 0.69 °

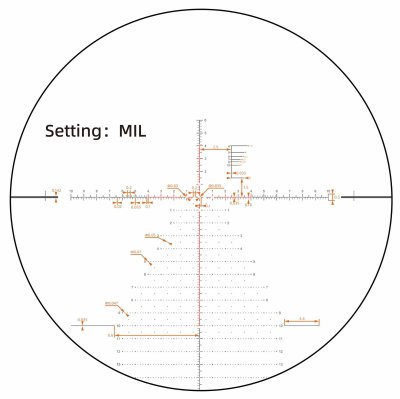

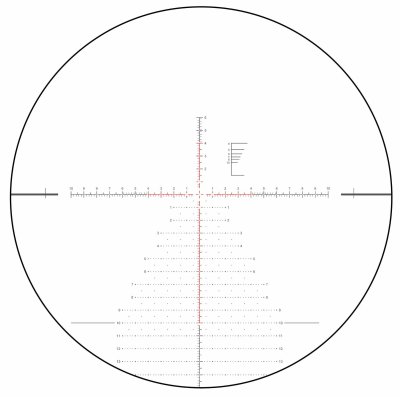

Reticle VEC-MBR2
Tube Dia 34 mm
Side Focus 15 yards to Infinity
Click Value 1/10 MIL

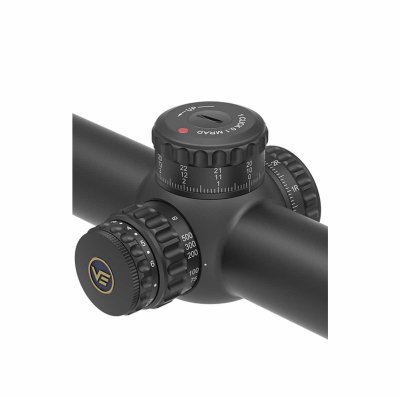

Turret Function Zero Stop, Turret Lock
Elevation Adjustment Range 31 MIL
Windage Adjustment Range 18 MIL
Diopter Compensation -3 to +2
Illumination Setting 11 Gears, On/Off Switch
Battery Type CR2032
Battery Life 20000 H
Waterproof IP67
Fogproof Nitrogen Filled
Shockproof 1000 G
Housing Material 6061-T6 Aluminum Alloy
Finish Matte Black
Length 404 mm / 15.91 in
Weight 861 g / 30.37 oz

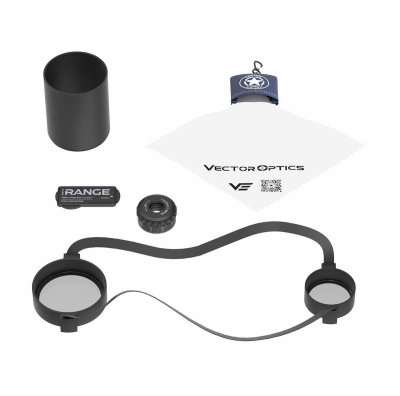

Items in the Package
User Manual, Plastic Wrench, Cleaning Cloth, Sunshade, Flip-up Caps, Spare Turret, 34mm Picatinny Rings, etc.
